Store agentgateway access logs in a SQLite or PostgreSQL database to power the UI analytics and enable historical log queries.

By default, access logs are written to stdout. To persist LLM request logs, configure agentgateway to write records to a request_logs table. The database logger captures LLM traffic, rather than every HTTP or MCP access log. Agentgateway can use the configuration database or a separate request-log database.

Set up the database

Agentgateway supports SQLite and PostgreSQL as log storage backends. Set config.logging.database.url to the connection URL for your database. Agentgateway detects the backend from the URL. A postgres:// or postgresql:// URL uses PostgreSQL and any other value is treated as a SQLite file path. The UI has no field for config.logging.database, so set it in your configuration file.

# yaml-language-server: $schema=https://agentgateway.dev/schema/config
config:
  logging:
    database:
      url: "sqlite:///data/logs.db"                        # SQLite
      # url: "postgres://user:password@host:5432/dbname"  # PostgreSQL

If you have a database configured for configuration storage in config.database, agentgateway automatically uses this database to store access logs. No additional configuration is required. Set config.logging.database explicitly when you want access logs to go to a different database than the one that is used for configuration storage. If neither config.logging.database nor config.database is set, no database log store is initialized and access logs are written to stdout only.

For database setup instructions, including how to deploy PostgreSQL for Kubernetes installs, see Configuration storage.

mode: database
database:
  postgres:
    url: "postgres://user:password@host:5432/agentgateway"
config:
  logging:
    database:
      url: "postgres://user:password@host:5432/agentgateway_logs"

Access log data storage

Each access log record captures the following data.

Token and latency columns

request_logs includes these token and latency columns. Token values are empty when unreported. Latency values are empty for responses that are not streamed.

agctl standalone analytics uses these columns to report cache hit rate, average time to first token, and output tokens per second.

When a request prompt guard rejects an LLM request before the provider call, the database still stores a log record. The Logs page shows the rejection. The record includes request-side LLM metadata, but no provider response fields because the request never reaches the LLM provider.

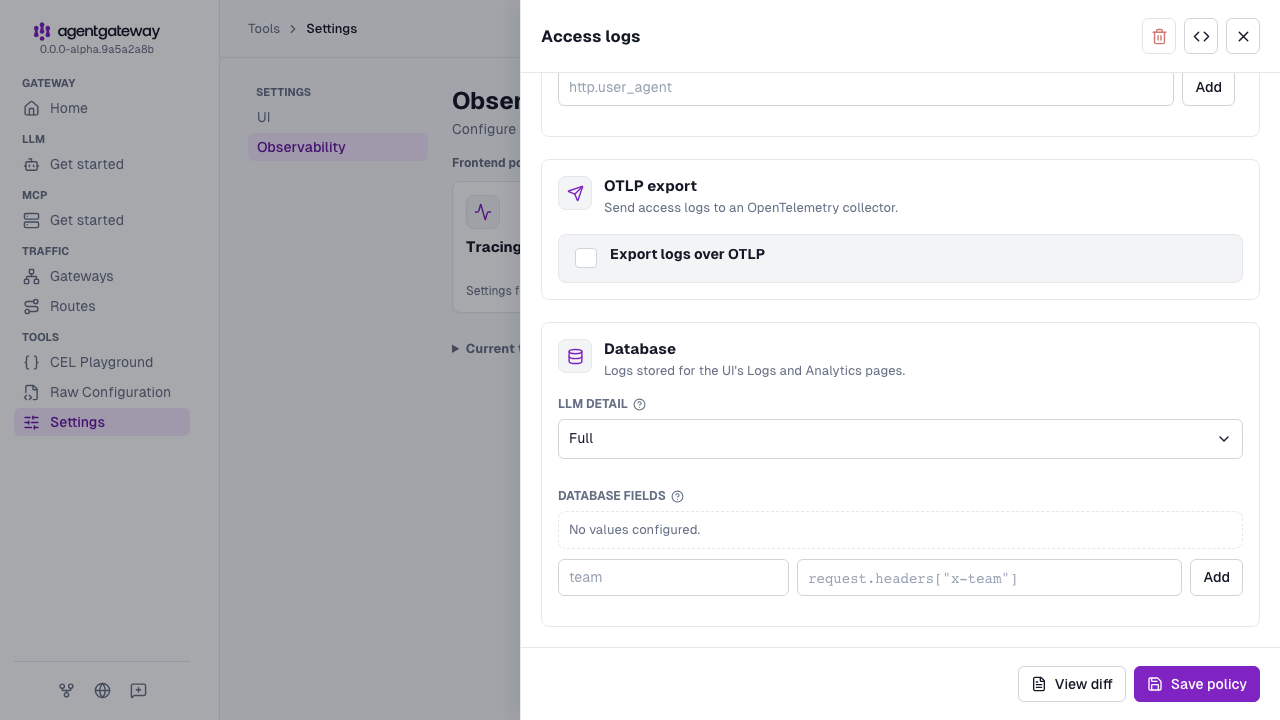

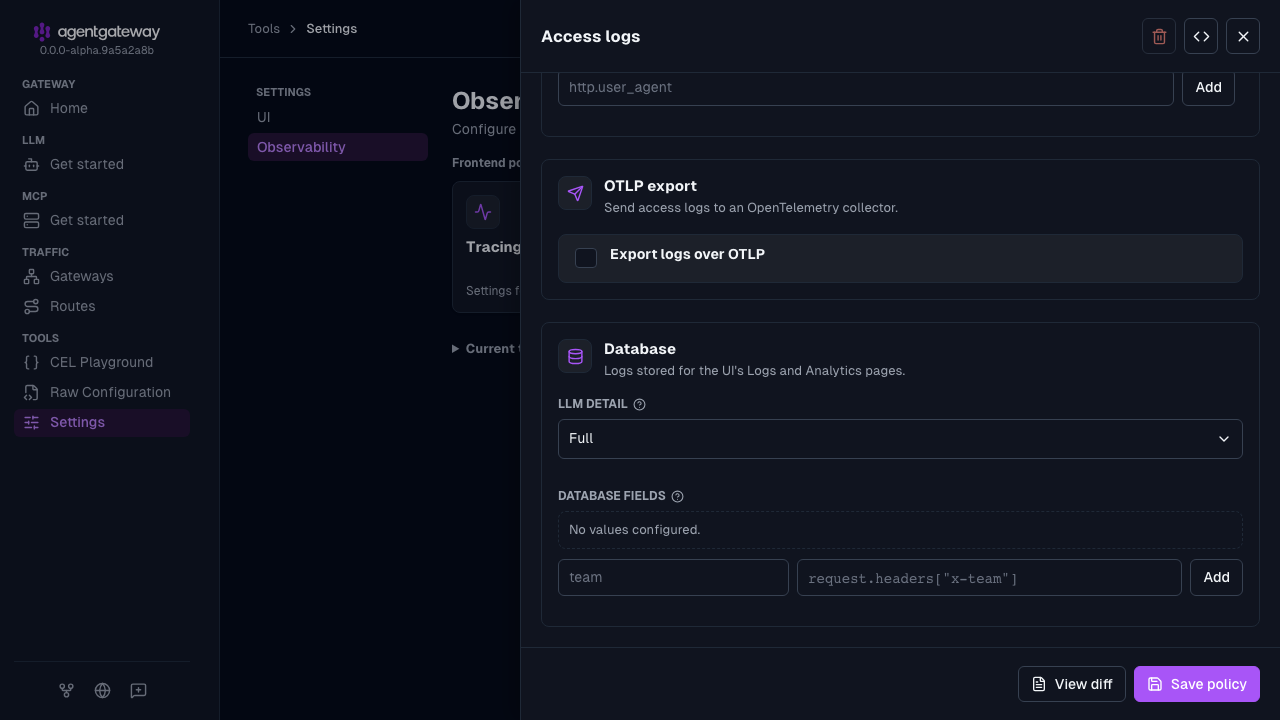

By default, LLM prompt and completion content is not stored. To capture it, set llm: full under the frontendPolicies.accessLog.database section. You can set it in the UI or in your configuration file.

# yaml-language-server: $schema=https://agentgateway.dev/schema/config
frontendPolicies:
  accessLog:
    database:
      llm: full

Schema migrations

At startup, agentgateway migrates the request log database that config.logging.database configures, or the database that config.database configures if you omit config.logging.database.

Applied changes are recorded in _agentgateway_request_log_migrations and run only once.

Upgrading from an earlier version, such as 1.6, adds the token and latency columns. Existing LLM rows are backfilled from attributes_json, so analytics include requests logged before the upgrade.

This backfill can delay the first startup on large tables. Back up the request log database before you upgrade.

To check which schema changes are applied to a SQLite database, query the migrations table.

sqlite3 /path/to/logs.db \
  "SELECT version, description, success FROM _agentgateway_request_log_migrations;"

Example output:

1|create request log schema|1
2|add request log analytics columns|1

On PostgreSQL, the migrations table also lists version 3, backfill request log analytics columns.

Downgrade to an earlier version

After migration, downgrade behavior depends on the backend.

• SQLite: Earlier versions keep writing logs but leave the new columns empty. Upgrading again does not rerun the migration, so those rows remain unfilled.

• PostgreSQL: Earlier versions cannot start because they do not recognize the applied migrations. To downgrade, follow the steps in this section.

  Error: failed to migrate request log database schema
      migration 2 was previously applied but is missing in the resolved migrations

To downgrade agentgateway with a PostgreSQL request log database:

1. Delete the newer migration records. The new columns remain, and the earlier version ignores them. In the following command, the DATABASE_URL environment variable holds the connection URL of the request log database.

   psql "$DATABASE_URL" \
     -c "DELETE FROM _agentgateway_request_log_migrations WHERE version IN (2, 3);"

   Example output:

   DELETE 2

2. Start the earlier version of agentgateway.

3. Optional: To return to the newer version later, upgrade agentgateway again. The migrations run again and backfill the new columns, including logs written after the downgrade.

Query the database

Use agctl for routine queries through the gateway API. You do not need database credentials on the machine running the CLI.

agctl standalone logs --limit 10
agctl standalone logs --since 1h --attributes -o json
agctl standalone analytics --by provider,model --since 24h

To inspect a stored prompt and completion, run agctl standalone logs <request-id> with an ID from the listing. Payloads are available only when capture was enabled. For filters and streaming, see View LLM request logs with agctl.

Query with a database client

Use your database client to inspect the request_logs table directly and verify that access logs were written successfully. The following examples show the most recent 10 log entries.

sqlite3 /path/to/logs.db \
  "SELECT id, started_at, http_status, gen_ai_provider_name, duration_ms FROM request_logs ORDER BY started_at DESC LIMIT 10;"

psql "postgres://user:password@host:5432/dbname" \
  -c "SELECT id, started_at, http_status, gen_ai_provider_name, duration_ms FROM request_logs ORDER BY started_at DESC LIMIT 10;"

To include LLM prompt and completion content (if you enabled llm: full), join the request_log_payloads table.

SELECT r.id, r.started_at, r.http_status, p.request_prompt_json, p.response_completion_json
FROM request_logs r
LEFT JOIN request_log_payloads p ON r.id = p.log_id
ORDER BY r.started_at DESC
LIMIT 10;

Add custom fields to database logs

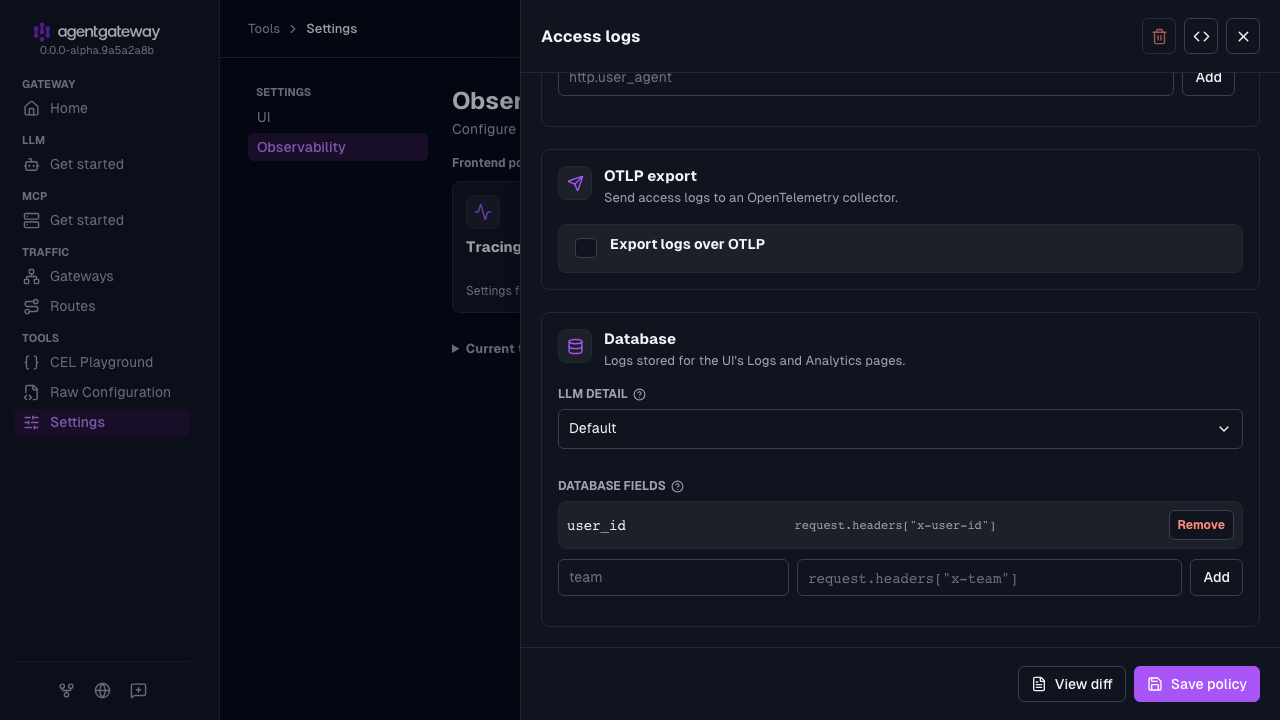

Use the frontendPolicies.accessLog.database.add field to store additional access log fields that are evaluated as CEL expressions alongside each record.

# yaml-language-server: $schema=https://agentgateway.dev/schema/config
frontendPolicies:
  accessLog:
    database:
      add:
        user_id: 'request.headers["x-user-id"]'

Custom fields are stored as a JSON blob in the attributes_json column of the request_logs table, not as separate columns. After sending another LLM request, inspect the new fields through the CLI, or use your database’s JSON functions below.

agctl standalone logs --attributes -o json
agctl standalone analytics --by user_id --since 1h

sqlite3 /path/to/logs.db \
  "SELECT id, json_extract(attributes_json, '$.user_id') AS user_id, started_at, http_status
FROM request_logs
ORDER BY started_at DESC
LIMIT 10;"

psql "postgres://user:password@host:5432/dbname" \
  -c "SELECT id, attributes_json->>'user_id' AS user_id, started_at, http_status FROM request_logs ORDER BY started_at DESC LIMIT 10;"

Disable database logging

Agentgateway writes request logs to config.logging.database. If that field is not set, agentgateway writes request logs to config.database instead. To stop writing access logs to a database, remove both fields, and then restart agentgateway. If you keep config.database for other features, such as budgets or hybrid configuration storage, agentgateway keeps writing request logs to that database. After you remove both fields, access logs continue to go to stdout, and the database-backed UI pages and the agctl standalone logs and agctl standalone analytics commands become unavailable.
